XNX-UTAV-NNIV1

XNX-UTAV-NNIV1

Honeywell
$1714.50

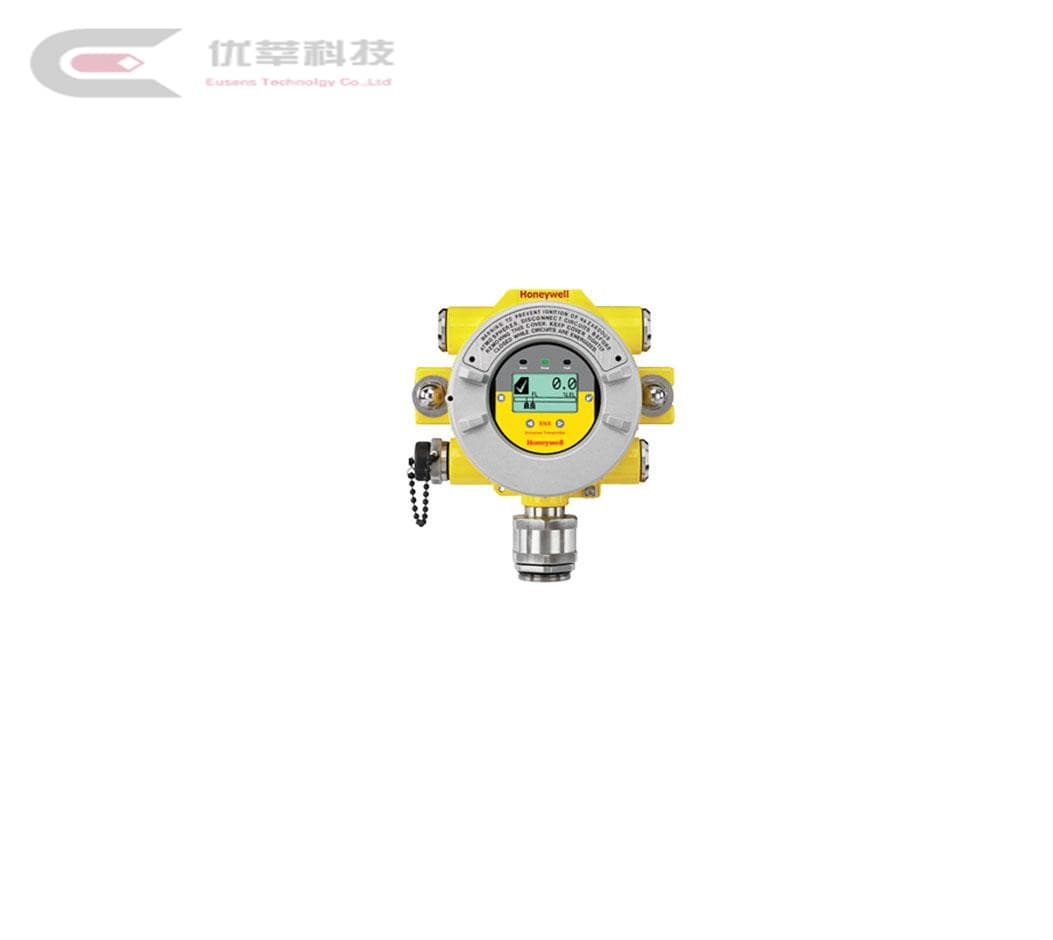

XNX-UTAV-NNIV1 -- Honeywell -- Gas Detector Hydrocarbon (Methane) Sensor

Product Description

  • Estimated Lead Time : 4 - 8 weeks.
  • Manufacturer : Honeywell
  • Product no. : XNX-UTAV-NNIV1
  • Product type :Gas Detector Hydrocarbon (Methane) Sensor
  • 3 versions = Supports mV (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection
  • Multi-purpose detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability
  • 4-20mA with HART搴 as standard
  • Multiple communications options include up to 3 relays, MODBUS搴 and FOUNDATION搴 H1 Fieldbus (pending)
  • Optional local IS port for handheld HART configurator
  • Dimensions : 16x 19.7x 11.4
  • 3 or 4 wire operation, source, sink or isolated
  • Use with conduit or cable installations
  • Simple plug-in sensors and replaceable cells
  • NEMA 4X IP66 rated for rugged indoor/outdoor use
  • Approval : U = UL- CSA
  • Entry Type : T = _"NPT
  • Material : A = Aluminium
  • Personality : m V =_ : Interface for milli-Volt sensors For use with MPD, Sensepoint (and Model 705) HT and PPM Sensors
  • Option_ : N = No Option installed_
  • Local HART : N = No Option installe
  • Sensor and range : Specifies the MPD sensor : IV1 IR = IR 0-100%LEL (or 0-5%Vol.) Methane
  • Shipping weight : 5.5 kg
