XFL523-B

XFL523-B

Honeywell
$292.50

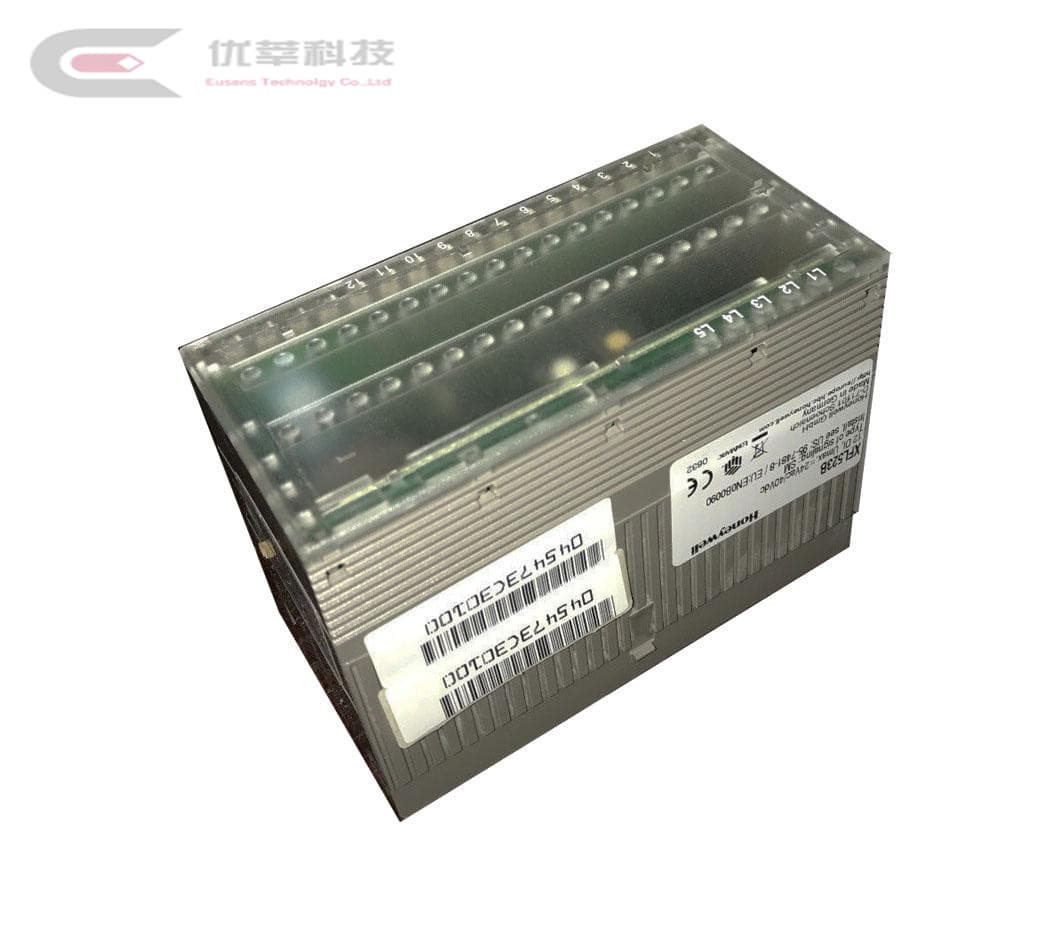

XFL523-B -- Honeywell -- Digital input module

Product Description

  • Estimated Lead Time : 2 - 3 weeks.
  • Manufacturer : Honeywell
  • Product No. : XFL523-B
  • Product type : Digital input module
  • Twelve inputs (DI1 ??DI12)
  • Ri = 10K ohm
  • Max. 20 Hz input frequency
  • ON/OFF state: OFF: Ui = 2.5 Vdc; ON: Ui = 5 Vdc
  • Protected switching up to 40 Vdc / 24 Vac
  • LED per channel, color selectable in two groups (SW1: DI 1 ??6; SW2 DI: 7 ??12); color combinations
  • 18 Vdc auxiliary voltage supply (unregulated)
  • 1 sec polling time with CPU
  • Green power LED (L1) and red LONWORKS status LED (L2)
  • Dimensions (HxWxD), approx. : 7cm x 4.7cm x 9.7cm
  • Shipping Weight : 2 Kg
