VT5050M1003

VT5050M1003

Honeywell
$573.30

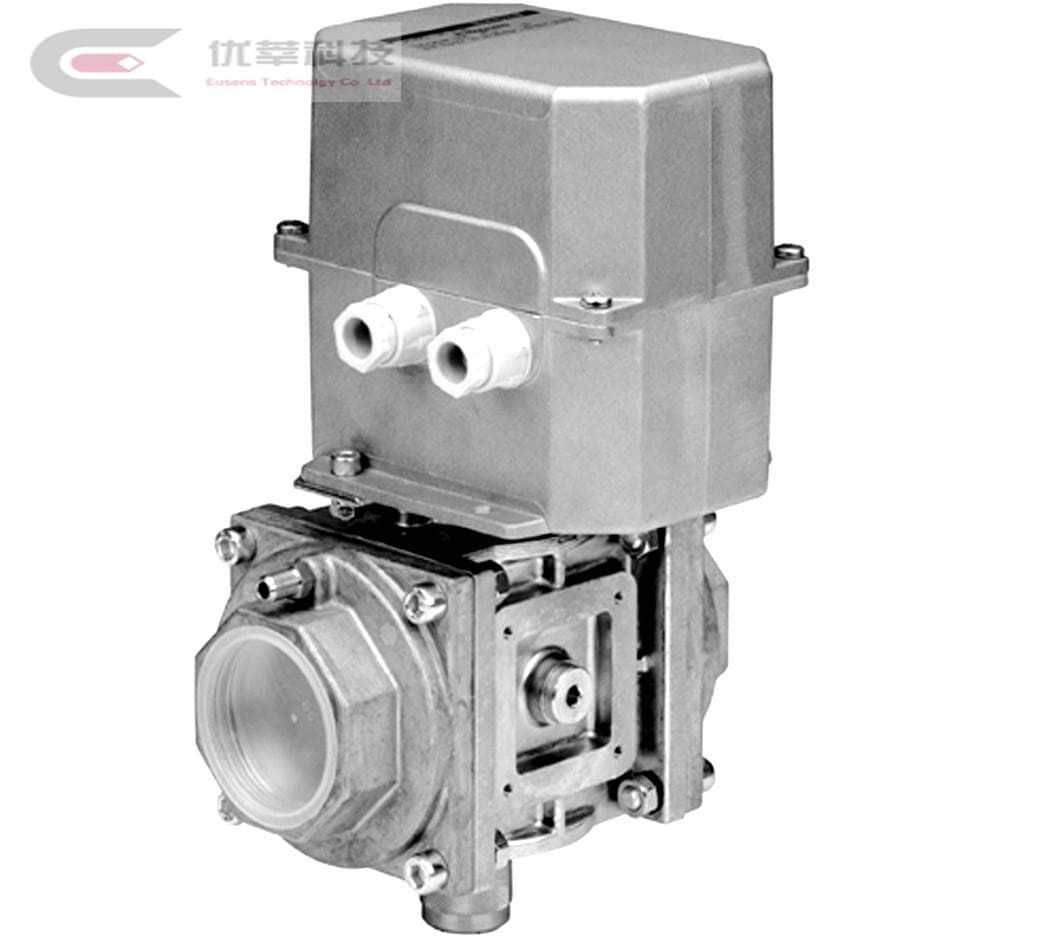

VT5050M1003 -- Honeywell -- Throttle valve 1"1/4"-2"+adaptor plate for Modutrol IV

Product Description

  • Estimated Lead Time: 6-8 Weeks
  • Manufacturer: Honeywell
  • Throttle valve 1"1/4"-2"+adaptor plate for Modutrol IV
  • VT5050M1003
  • Honeywell Throttle gas valve VT5000 Series
  • These gas valves allow flow modulation with the possibility to set both minimum flow, by regulating the initial angle of the motor, and maximum flow by adjusting the
  • regulator screw at the bottom of the valve.
  • These valves are suitable for gaseous fluids in gas power burners, atmospheric gas boilers, melting furnaces, incinerators and other gas consuming appliances. The
  • VT5000 series throttle valves are available in two versions: model VT5025 (with 1/2, 3/4" and 1" flanges) and model VT5050 (with 1 1/4", 1 1/2" and 2" flanges).
  • There is also one model with factory mounted actuator (MT4000): VT4025A.
  • Gas valve type: Actuator operated throttle valve for flow control
  • Media: Air, natural gas, manufactured gases
  • Materials: Aluminium alloy die-cast. Viton O-ring seals. Valve dish: Stainless steel.
  • Approvals: CE
  • Uses Honeywell KTVT-series flanges for direct mounting in a pipe train or can be attached directly to the in- or outlet of VQ400-series dual valves or VR400-series
  • combi valves for special applications.
  • For selection of suitable actuator, refer to MT4000, MF4000, LKS160 or Modutrol IV chapters.
  • Pipe connection: Threaded flanges
  • Threads type: BSP
  • Max. operating pressure: 360mbar
  • Ambient temperature: -15...60C
  • With mounting bracket for actuator
  • Valve dimension: DN50
  • Maximum opening time: no
  • Maximum closing time: no
  • Protection class: no
  • Electrical connection: no
  • Comment: For Modutrol IV
  • Shipping Weight:Please ask to our sales person for the shipping weight and shipping fees upon the manufacturer's spec sheets.
