\nEstimated Lead Time: 4 -6 Weeks\n

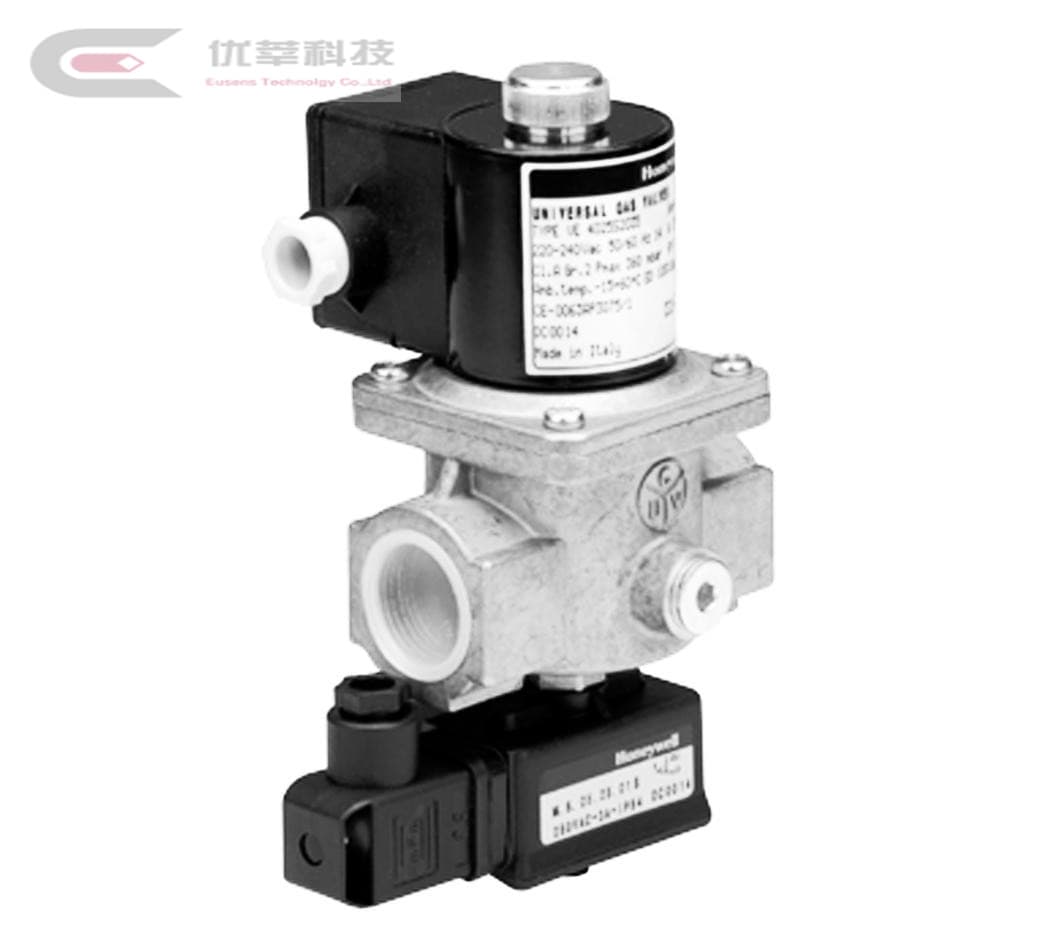

\n\nVE4020S2077\n\n\n\nSolenoid valveEVI cm 20.3 360mb 220-240v, Ferrari special\n\nVE4000 Series\n\nSAFETY RELIEF SOLENOID VALVE VE4000S1/2\n\n\nThe VE4000S1 and VE4000S2 Series safety relief solenoid\n\n\nvalves are used for safety and control of gaseous fluids in gas\n\n\npower burners, atmospheric gas boilers, melting furnaces,\n\n\nincinerators and other gas consuming appliances.\n\n\nNormally Open valve.\n\n\n(spring loaded valve disc, opened when de--energized)\n\n\nNon regulated ON/OFF.\n\n\nClosed Position Indication switch (optional for VE4000S1).\n\n\nOpening/closing time: <1 sec.\n\n\nMaximum working frequency: 20 cycles/min.\n\n\nWrench boss as well on inlet side as on outlet side for\n\n\npipe fitting incorporated in the valve housing.\n\n\n2 Auxiliary pressure taps with Rp 1/4??threaded\n\n\nconnections, both on the inlet pressure side.\n\n\nCoil field replaceable.\n\n\nCoil suitable for permanent energization.\n\n\nCoil turnable over 360_.\n\n\nInternal fine mesh screen\n\n\nModels: VE4000S1, without Closed Position Indication (CPI) switch VE4000S2, with CPI switch\n\n\nPipe sizes: Inlet and outlet 3/4??and 1??internal parallel pipe thread according to ISO 7--1. The valve may be assembled on the pipeline within plus or minus 90 degrees \n\nof the vertical axis and 30 cm. air space around the coil assy.\n\n\nMaximum operating pressure: 200 or 360 mbar Torsion and bending stress Pipe connections meet group 2, according to EN161 requirements \n_Shipping Weight: 3 kg
