Product Description

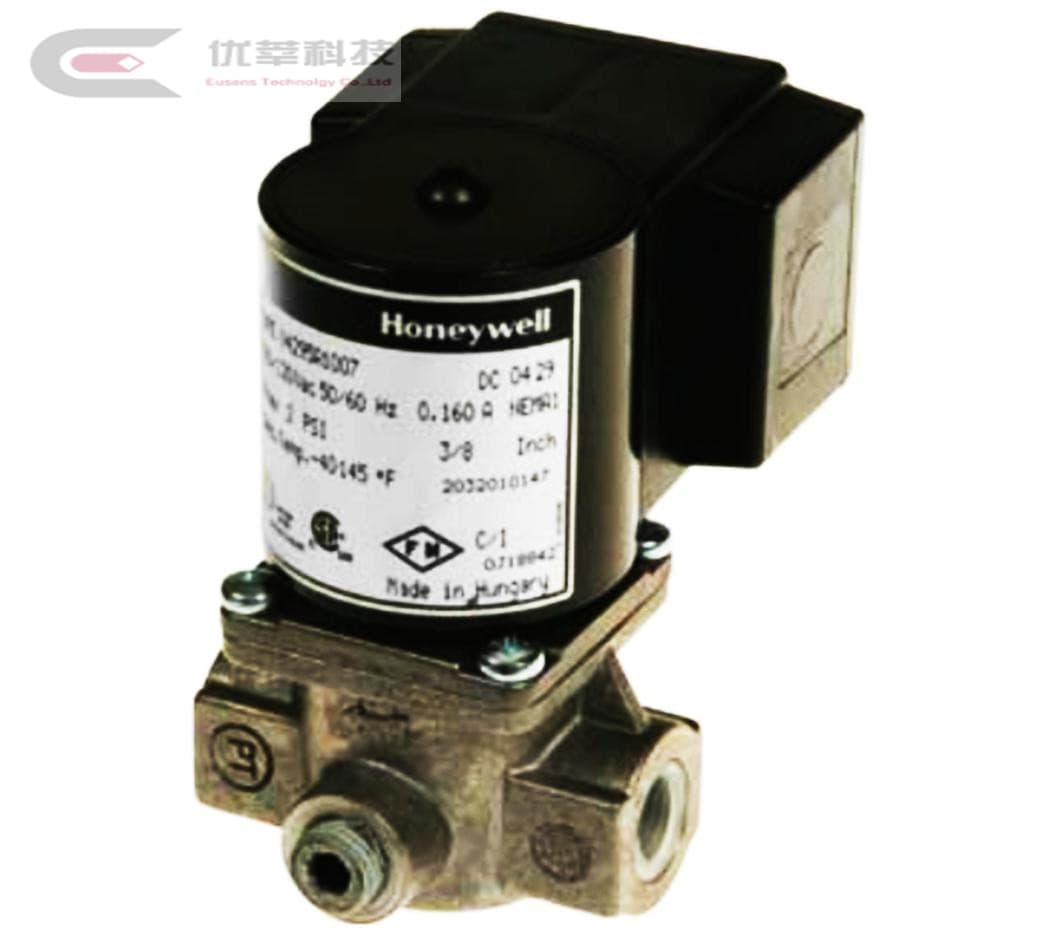

Estimated Lead Time: 6-8 WeeksManufacturer: Honeywell2" NPT, 2 PSIV4295A10642 in. NPT Solenoid, N.C. Gas ValveV4295A/V8295A normally closed and V4295S/V8295S normally open (vent) solenoid gas valves, are suitable for furnaces, ovens, atmospheric burners, commercialwater heaters, roof-top make-up air units, power burners, and commercial/industrial boilers.V8295A,S are used with 24 Vac controllers.V4295A,S are used with 120 Vac controllers.Positive close off of gas flow when de-energized.High valve spring force allows up to 0.7 psi back pressure at valve seat.No inlet pressure influence at valve seat.Inlet pressure changes do not affect ability to close valve.Low operating noise.Low rush-in current.Upstream and downstream taps allows tapping and testing pressure points.Dimensions (in.):8 3/8 in. high x 6 11/16 in. wide x 5 3/8 in. deepDimensions (mm): 213 mm high x 170 mm wide x 137 mm deepMaterials: Body--Die-cast aluminumMounting: Vertical to 90 degrees from verticalFrequency : 50 Hz; 60 HzApprovals, Underwriters Laboratories Inc.: Listed: File No. MH18476, V1, S1 - Guide No. YIOZApprovals, CSA: Certificate No. 158158-1154280, Guide No. C3371-03, 04, 83Electrical Connections: Screw terminalsVoltage: 120 VacOperating Temperature Range (F): -40 F to +140 FOperating Temperature Range (C): -40 C to +60 CApprovals, Control Safety Devices: AcceptableApprovals, Swiss RE: AcceptableApprovals, Factory Mutual: Approved: Report No. J.I.OD6A2.AFCurrent Ratings: 0.525 max amps at rated Vac/HzBody Pattern: Straight-through, non-offsetPressure Ratings (psi): 2 psiPressure Ratings (kPa): 13.8 kPaCapacity (m椴/hr): 98.1 m3/hrPressure Tapping:Inlet and outlet pressure taps-- 1/4 in. NPTType of Fuel:Air; natural; manufactured; mixed; LPPipe Size (inch):2 in.Pipe Size (DN):DN50Capacity (cfh):3465 cfhValve Opening Time: less than 1 secValve Closing Time: less than 1 secShipping Weight: 7 Kg
