Product Description

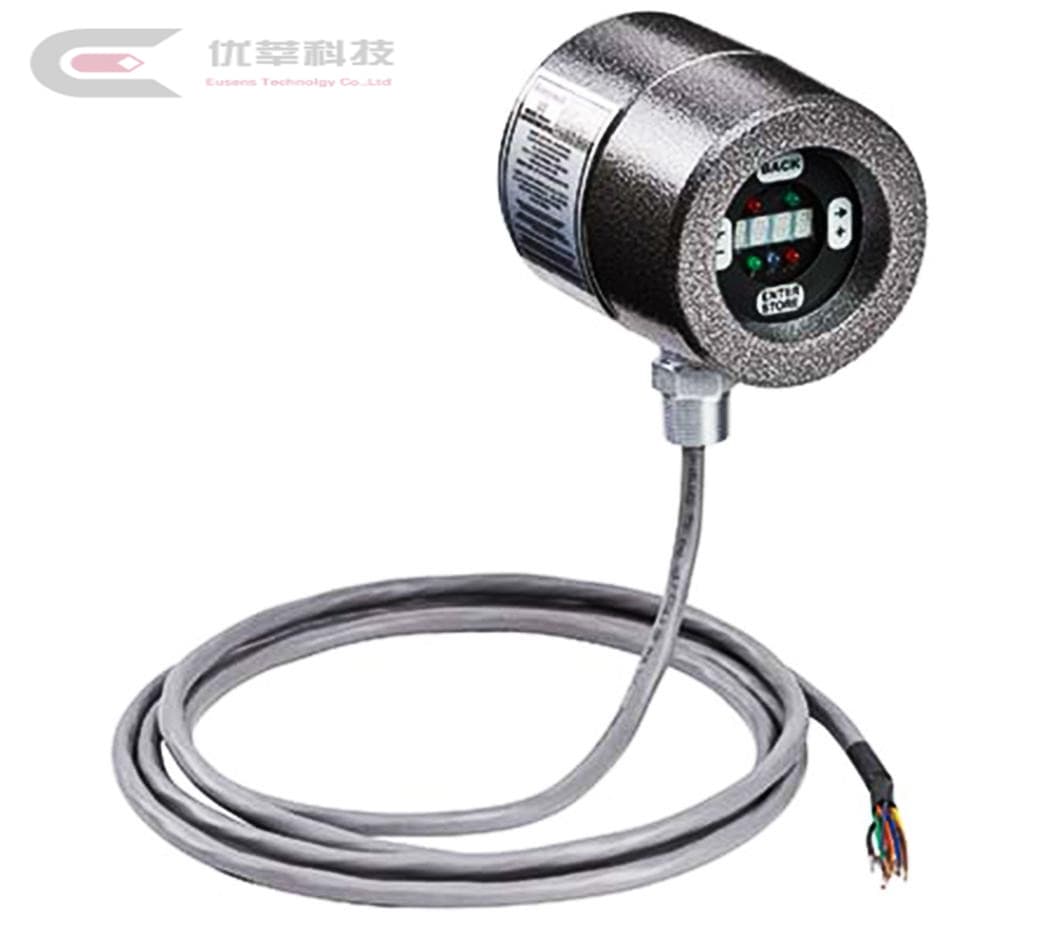

Estimated Lead Time: 6-8 WeeksManufacturer: HoneywellU2-1010-PFCombination DC signal processor and viewing head with UV and IR sensors with fatory installed 10' (3 m) cable U2-101x and U2-101x PF are integrated viewing head and processor (All in One) with integral touch screen for operator interface.One Normally Open Flame relay contact and one Normally Open Fault relay contact is provided for interlock. 0-20 or 4-20 mA scalable analog output is also provided. Power input is 24 VDC @120 mA.Temperature sensor is included that provides display in degree F and C. System is self checking (no mechanical shutter) and fail safe, fit for use in SIL3 application.Approvals include NEMA 4X (IP66), Class I Div 1 (IEC Ex d-ATEX Zone 1) for PF version and Class I, Div 2 (IEC Ex nA) for quick disconnect type models. For remote monitoring and configuration, FLAMETOOL _ユ_MI (support 32 loops) or FLAMETOOL-PC (Supports 248 loops) is available.Available models are UVtron only (clean gases), IR only (oil and coal), UVtron plus IR (for all fuels- all applications including SRU, Kiln etc.). (UVSS is currently disabled).Application : Single or multiple burners, all Fuels (oil, gas and coal) inclduing SRU, Kiln etcDimensions (in.): 4.3 in. wide x 4.6 in. deep x 6.1 in. highDimensions (mm) : 109 mm wide x 155 mm deep x 117 mm highComments : Other Approvals: IEC Ex d /ATEX zone 1 and SIL3 (Temperature Range -40 to 158 F;-40 to 70 C)Mounting : 1" NPT process connectionElectrical Ratings : 22-26 VdcApprovals, Canadian Standards Association : Approved (Temperature Range -40 to 158 F;-40 to 70 C)Required Components : R-518-PT12 and R-518-CL12-PG purge air quick coupler sold separately.Approvals, Factory Mutual : Approved (Temperature Range -40 to 158 F;-40 to 70 C)Output : 1 NO for flame, 1 NO for Fault and 4-20mAConnection Type : 10 conductors, 10' (3m) factory installed cableKeypad : Integrated touch screenStatus Monitoring : 1 LED for each sensorCommunications : ModBus and RS422 CompatibleShipping Weight : 1.5 Kg
