TPPLBAWA8NNNNNN

TPPLBAWA8NNNNNN

Honeywell
$3064.50

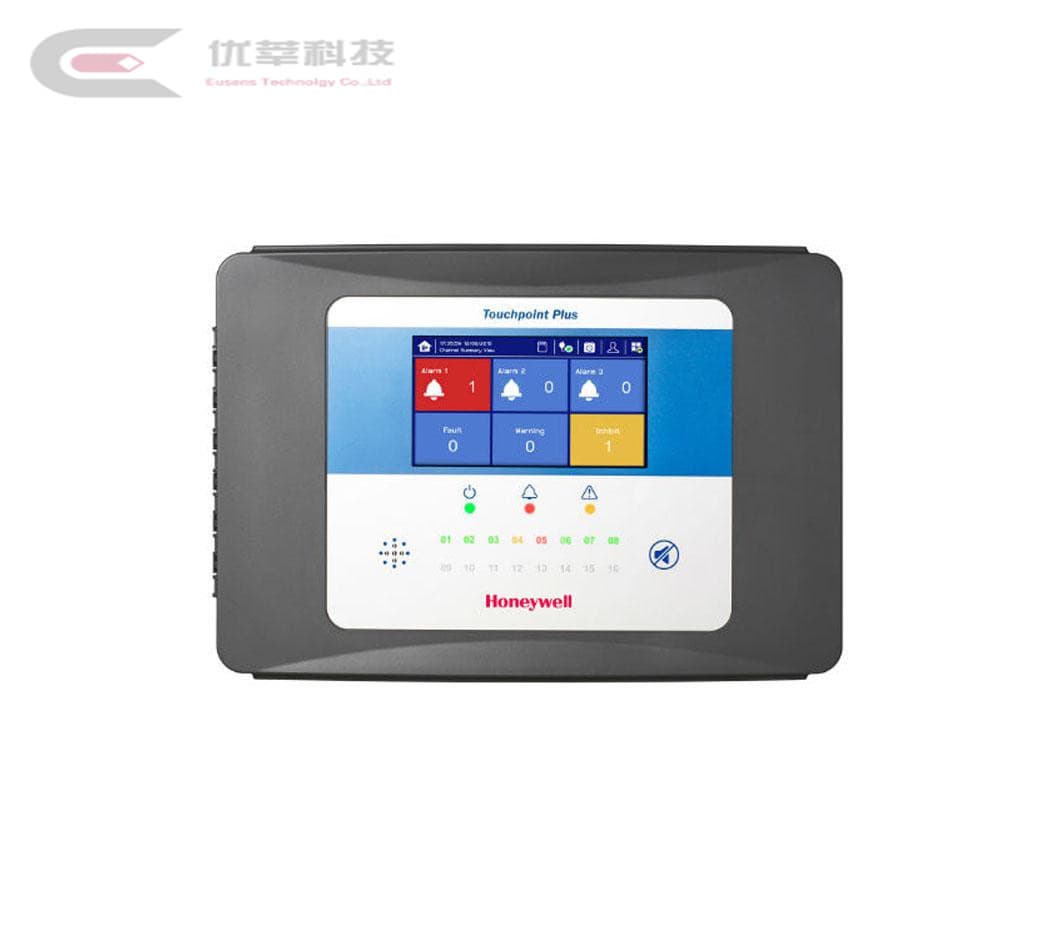

TPPLBAWA8NNNNNN -- Honeywell -- Touchpoint Plus base Control Unit

Product Description

  • Estimated Lead Time : 8 - 10 weeks.
  • Manufacturer : Honeywell
  • Product No. :__PPLBAWA8NNNNNN
  • Product type : Touchpoint Plus base Control Unit
  • Unit Type : B = Base Unit
  • Power : A = AC
  • Mounting Type : W = Wall Mount
  • Input Option : A8 = 8ch mA Input
  • Relay Option : N = No Relays
  • Output Option : N = No mA Output
  • Battery : N = None
  • Future Use : NNN
  • Capacity : Up to 8 channels with base unit, up to 16 channels with expansion unit
  • Type of Inputs : 2 or 3 wires, mA, mV, max. 15W per channel, max 40W total (with dedicated A/V drive) / 68W total (without dedicated A/V drive)
  • Housing Material : Polycarbonate ABS
  • Display : 7_??colour LCD touchscreen. Graphic User Interface
  • Visual Indicators : 3 LEDs for master indicators. LED for each channel. Green: Normal; Yellow: Fault: Inhibit; Red: Alarm
  • Power AC : 110/220VAC, 50-60Hz Manual switching
  • Power Consumption : Max 105W (including detector and external devices)
  • Power DC : 18 to 32 VDC (+/-10%) Typical 24VDC
  • Size (wall-mounted version) : 42.6 cm _ 30 cm _ 15.6 cm
  • Shipping Weight : 10 Kg
