Product Description

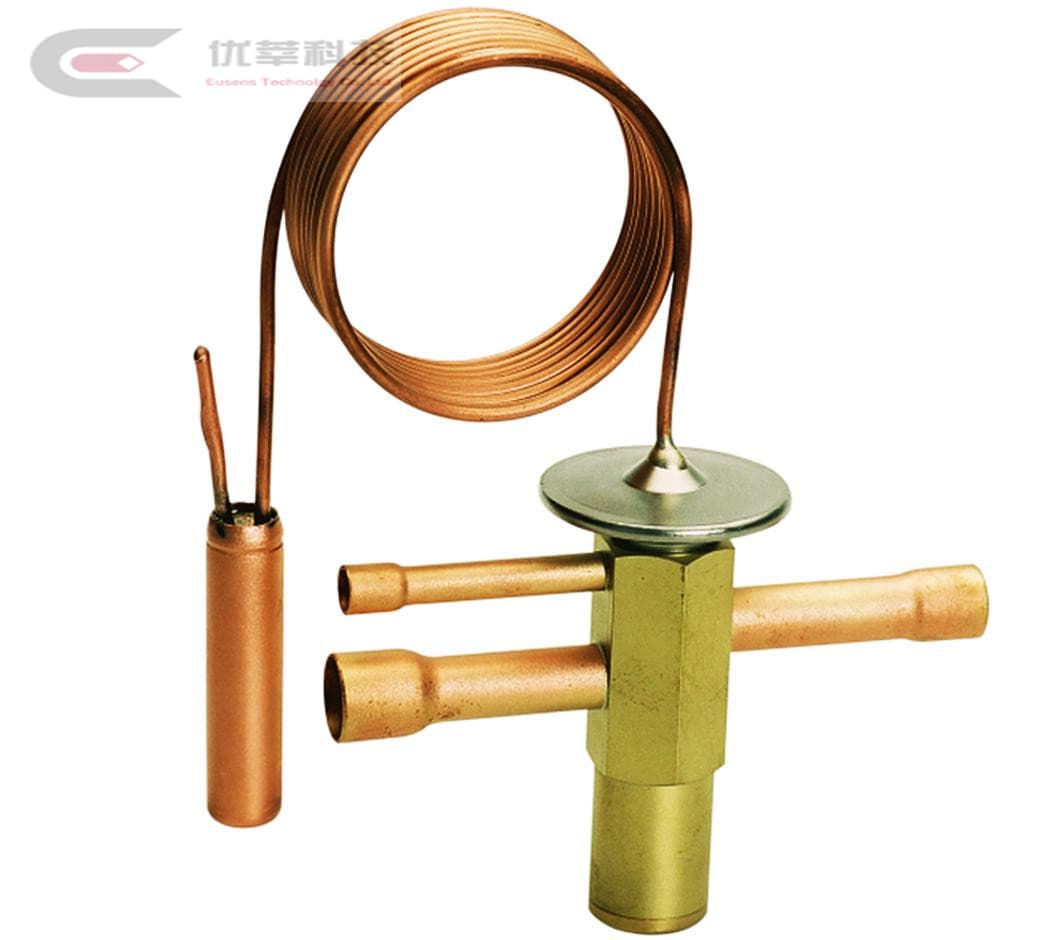

Estimated Lead Time: 6-8 WeeksManufacturer: HoneywellTLEX-20111Honeywell Series TLEX 4.75 to 7 - all MOP (gas charge) - Balanced Port - TEV with fixed orifice and adjustable superheat settingSeries TLEX 4.75 - 7 Thermostatic Expansion Valve with built-in orifice, solder connections, adjustable superheat setting, external pressure equalization and with balanced port.Thermostatic expansion valve for use in plants with one or more circuits, for chiller units, heat pumps and transport cooling applicationsWarm control diaphragm provides best reliabilityExtreme durability thanks to welded stainless steel head and stainless steel diaphragmFor maximum pressure PS see specification sheetFor maximum test pressure PF see specification sheetSpecial versions (bypass, other refrigerants, etc.) on requestFor capacities of orifices download attached engineering manual or check with our selection software Valve ToolSeries: TLEX 4,75-7Orifice: solid built-inConnections: solderPressure equalizer: externalSuperheat setting: adjustableBalanced port: yesCapillary tube length: 2mBulb diameter: 16mmBrass parts: bodyStainless steel parts: internals, power headCopper parts: connection tubes, bulbMax. ambient temperature: 100CMax. bulb temperature: 140CThermal charge (gas): R22, R134a, R404A, R407CGas charge with MOP at +10COrif. size: 7R 22: yesR 134a: noR 404A: noR 407C: noEvaporating temp.: 10...-45CInlet ODF: 16mmOutlet ODF: 22mmPress equal: 6mmODFStat s.ht: 2,8KMOP.: 10CCh.: gasShipping Weight : 2 Kg
