STR735D-21CS1B4-AFAAB21A0-A-CHO-13S-A-70A0-F1-0000

STR735D-21CS1B4-AFAAB21A0-A-CHO-13S-A-70A0-F1-0000

Honeywell
$2332.80

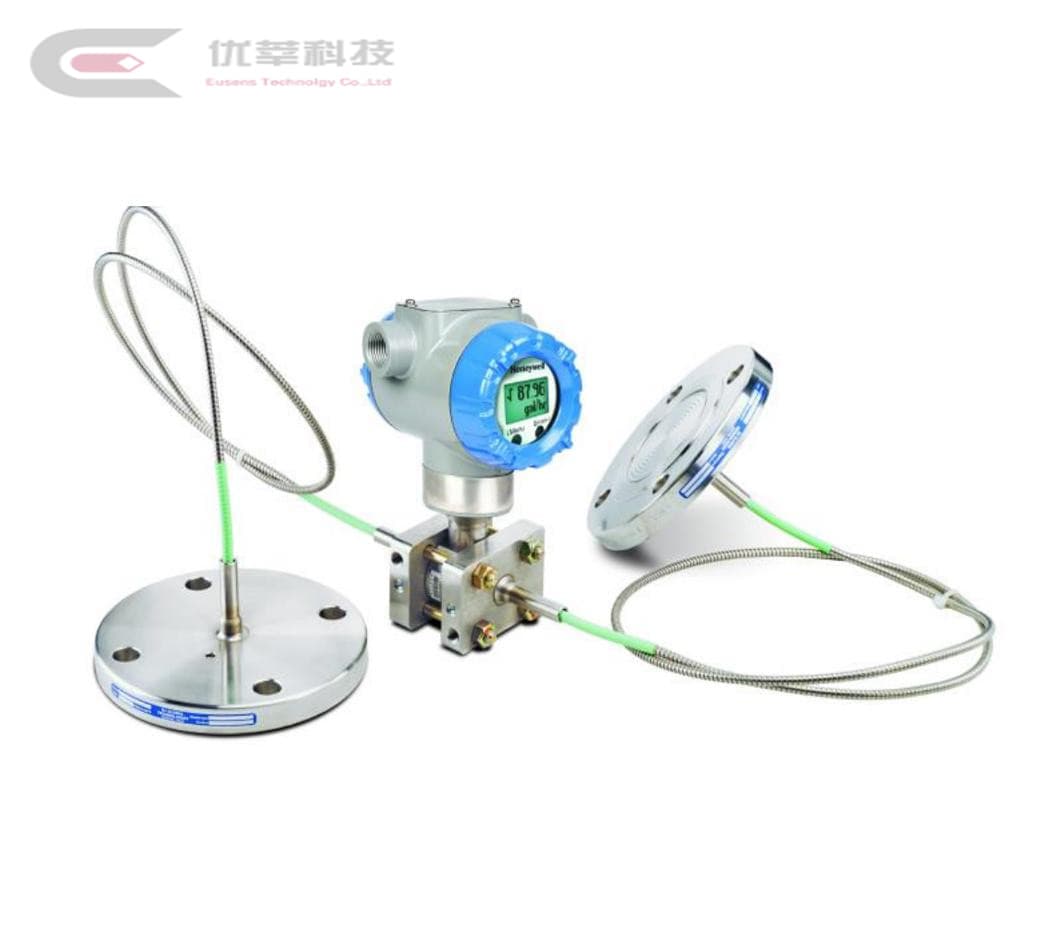

STR735D-21CS1B4-AFAAB21A0-A-CH0-13S-A-70A0-F1-0000 -- Honeywell -- ST700 Remote Diaphragm Seal Transmitters

Product Description

  • Estimated Lead Time : 7 - 9 weeks.
  • Manufacturer : Honeywell
  • Product No. : STR735D-21CS1B4-AFAAB21A0-A-CHO-13S-A-70A0-F1-0000
  • Product type : ST700 Remote Diaphragm Seal Transmitters
  • Number of Seals : 2 = Remote Seals
  • Primary Fill Fluid (Meter body) : 1 = Silicone Oil 200
  • Dual Head DP : C = 316 SS (bolt-on heads)
  • Bolts and Nuts forTransmitter Heads : S = 316 SS Bolts and Nuts
  • Secondary Fill Fluid (capillary & seal) : 1 = Silicone Oil 200
  • Connection of Remote Seal to Meter Body : B = 10 feet, 3.0 m, SS Armor
  • Seal Option : 4 = Teflon Coated Seal Diaphragm - only for anti-sticking
  • Flush Flanged Seal (AFA) : Diaphragm Diameter = 3.5", Flange size = 3", ANSI Class 150
  • Wetted Material : AB = Hastelloy搴 C-276, 316L SS
  • Non-Wetted Material (upper) : 2 = 316L SS
  • Seal-Capillary : 1 = Center Seal
  • Calibration Rings : A = None
  • Flushing Connections and Plugs : 0 = None
  • Agency Approvals : A = FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
  • Electronic Housing Material & Connection Type : C = Polyester Powder Coated Aluminum, 1/2 NPT, Lightning protection
  • Output/ Protocol : H = Analog output : 4-20mA DC, Digital Protocol: HART Protocol
  • Customer Interface Selections : 0 = None
  • Application Software : 1 = Standard Diagnostics
  • Output Limit, Failsafe & Write Protect Settings : 3 = Write Protect : Enabled, Fail mode : High> 21.0mAdc, High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc).
  • General Configuration : S = Factory Standard
  • Accuracy and Calibration : A = Accuracy : Standard, Calibrated Range : Factory Std, Calibration Qty : Single Calibration.
  • Mounting Bracket : 7 = Flat bracket, 316SS material.
  • Customer tag : 0 = None
  • Unassembled Conduit Plugs & Adapters : A0 = No Conduit Plugs or Adapters Required
  • Certifications & Warranty : F1 = Calibration Test Report & Certificate of Conformance
  • Factory : 0000 : Factory Identification
  • Shipping Weight : 20 Kg
