STF725-E1HN1A-J1F-C-BHS-11C-B-00A7-FG

STF725-E1HN1A-J1F-C-BHS-11C-B-00A7-FG

Honeywell
$1530.00

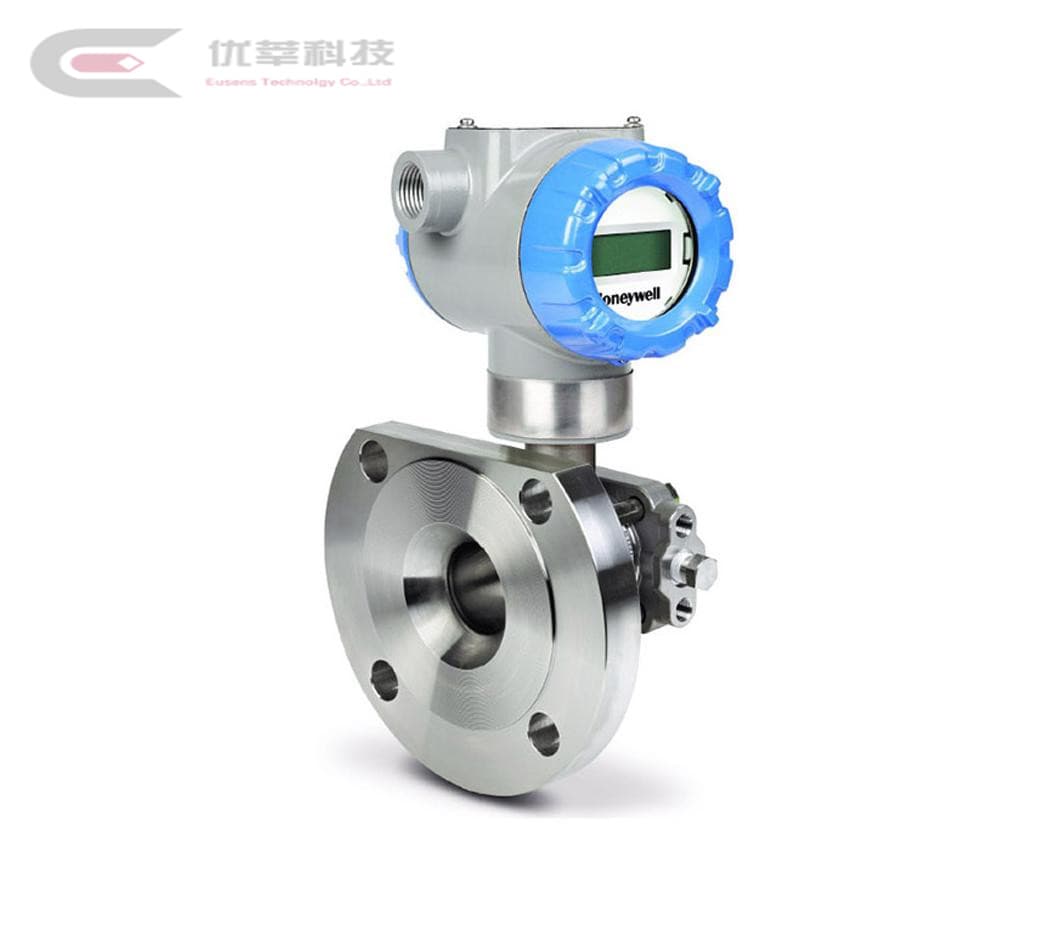

STF725-E1HN1A-J1F-C-BHS-11C-B-00A7-FG -- Honeywell -- STF700 Flange Mounted Liquid Level Transmitter

Product Description

  • Estimated Lead Time : 10 - 12 weeks.
  • Manufacturer : Honeywell
  • Product No. :__TF725-E1HN1A-J1F-C-BHS-11C-B-00A7-FG
  • Product type : STF700 Flange Mounted Liquid Level Transmitter
  • STF725 : Measurement Range = 400/(1000) URL, -400/(-1000) LRL, 400/(1000) Max span, 4.0 (10) min span, " H2O (mbar) units.
  • E = Flush Design, 316 SS Ref. Head, 316 SS Vent Drain Valve on Ref. Head, 316L SS Diaphrm. Plate (wetted).
  • Fill Fluid (Meter Body & Flange) : 1 = Silicone Oil 200
  • Process Connection : H = 1/2 NPT Adapter - material matches head, High Pressure Side Flange.
  • Bolts for Process Heads : N = A286 SS (NACE) Bolts
  • Vent/Drain Type/Location : 1 = Single Ended Head Type
  • Gasket Material : A = Teflon搴 or PTFE (Glass Filled)
  • Flange (ANSI Flanges have 125-500 AARH Surface Finish) : J = 3" ANSI Class 300, 316 SS (non-wetted), Flange Material, 304 SS (non-wetted) Threaded Nut Ring Material.
  • Gasket Ring (wetted) : 1 = Flush Design, 316L SS
  • Extension (wetted) No Selection Sel. 1 : F = Flush
  • Approvals : C = ATEX Explosion proof, Intrinsically Safe & Non-incendive
  • Electronic Housing Material & Connection Type : B = Polyester Powder Coated Aluminum material, M20 Connection.
  • Output/ Protocol : H = 4-20mA dc Analog Output, HART Protocol
  • Customer Interface Selections : S = Standard (w/Internal Zero,Span & Config Buttons) indicator, English.
  • Application Software : 1 = Standard Diagnostics
  • Output Limit, Failsafe & Write Protect Settings : 1 = Disabled Write Protect, High> 21.0mAdc Fail Mode, Honeywell Std (3.8 - 20.8 mAdc) High & Low Output Limits.
  • General Configuration : C = Custom Configuration (Unit Data Required from customer)
  • Accuracy and Calibration : B = Standard accuracy, Custom (Unit Data Required) Calibrated Range, Single Calibration.
  • Mounting Bracket : 0 = None (not required with flange mount unit)
  • Customer Tag : 0 = No customer tag
  • Unassembled Conduit Plugs & Adapters : A7 = M20 316 SS Certified Conduit Plug
  • Certifications & Warranty : FG = NACE MR0175; MR0103; ISO15156 Process wetted parts only.
  • Shipping Weight : 15 Kg
