STD820-E1HS4AS-1-C-BHC-13S-B-31A0-F1

STD820-E1HS4AS-1-C-BHC-13S-B-31A0-F1

Honeywell
$1028.70

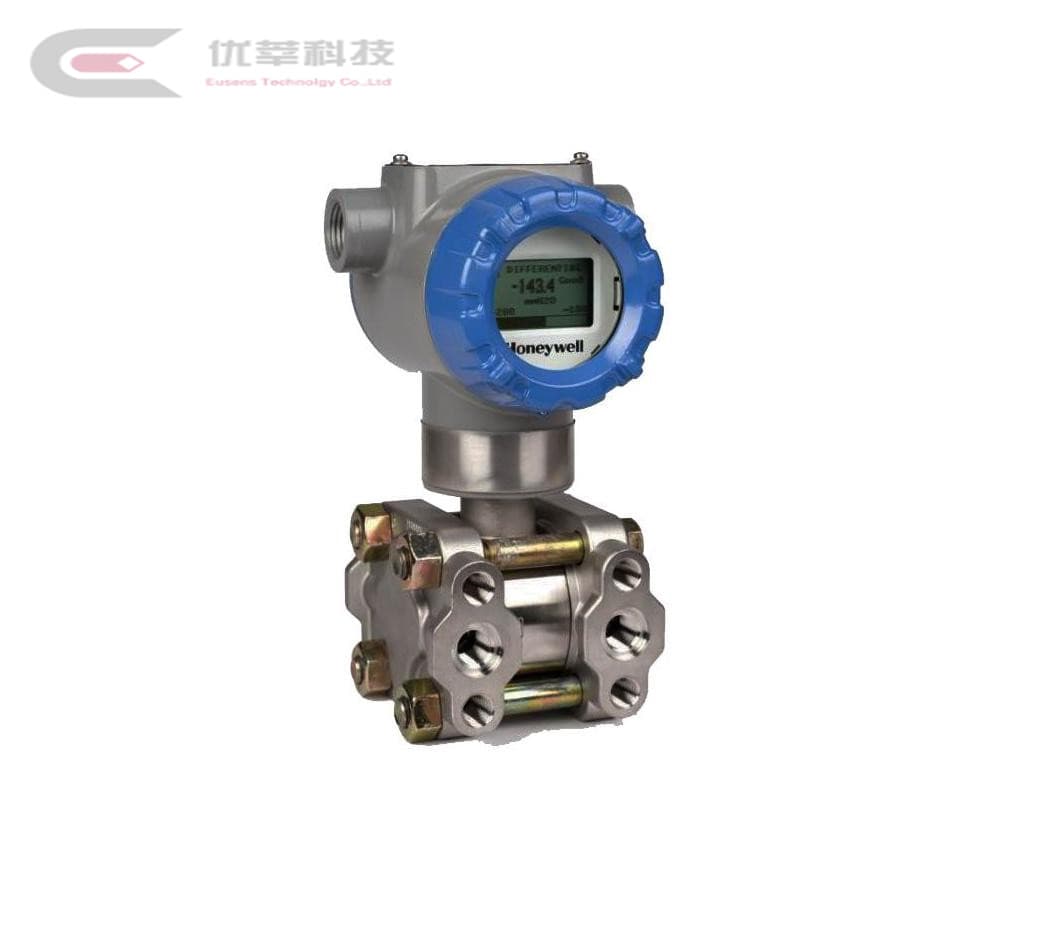

STD820-E1HS4AS-1-C-BHC-13S-B-31A0-F1 -- Honeywell -- Differential Pressure Transmitter

Product Description

  • Estimated Lead Time : 1 - 2 weeks.
  • Manufacturer : Honeywell
  • Product No. :__TD820-E1HS4AS-1-C-BHC-13S-B-31A0-F1
  • Product type : Differential Pressure Transmitter
  • E - Process Wetted Heads & Diaphragm Materials
  • Process Head Material : 316 Stainless Steel
  • Diaphragm Material : 316 Stainless Steel
  • 1 - Fill fluid : Silicone Oil 200
  • H - Process connection : 1/2" NPT female_
  • Materials to Match Head & Head Bolt Materials Selections
  • S - Bolt/Nut Materials : 316 SS
  • 4 - Vent/Drain Type/Location
  • Head Type : Dual Ended_ _
  • Vent Type : Standard Vent
  • Location : End
  • A - gasket Material : Teflon搴 or PTFE (Glass Filled)_
  • Vent Material : Matches Head Material
  • S - Static Pressure : Standard Static Pressure - 4500 psig (310 bar) except STD810: 50 psi (3.5 bar)
  • 1 -_ Head/Connect Orientation : Standard High Side Left, Low Side Right2 / Std Head Orientation
  • C - Approvals : ATEX Explosion proof, Intrinsically Safe & Non-incendive
  • B -_ Electronic Housing Material & Connection Type
  • Material : Polyester Powder Coated Aluminum
  • Connection : M20
  • Lighting Protection : None
  • H - Output/Protocol : analog output 4-20mA dc, Digital Protocol HART Protocol
  • C - Customer Interface Selections : Indicator Basic, Ext Zero Span & Config Buttons Yes, Languages English
  • 1 - Application software : Standard Diagnostics_
  • 3 - Output limit, Failsafe & write protect settings_
  • Write Protect : Enabled
  • Fail mode : High> 21.0mAdc
  • High & low Output limits : Honeywell Std (3.8 - 20.8 mAdc)_
  • S - General configuration : Factory standard
  • B - Accuracy and calibration : accuracy Satndard, Calibrated range Custom, Calibration qty single calibration
  • 3 - Mounting bracket : Bracket type Angle bracket, Material 316 SS
  • 1 - Customers Tag : One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
  • A0 - Unassembled Conduit Plugs & Adapters : No Conduit Plugs or Adapters Required
  • F1 - Certifications & Warranty : Calibration Test Report & Certificate of Conformance (F3399)_
  • Shipping weight : 5 Kg
