STD735-E1AC4AS-1-0-AHS-11S-A-00A0

STD735-E1AC4AS-1-0-AHS-11S-A-00A0

Honeywell
$837.00

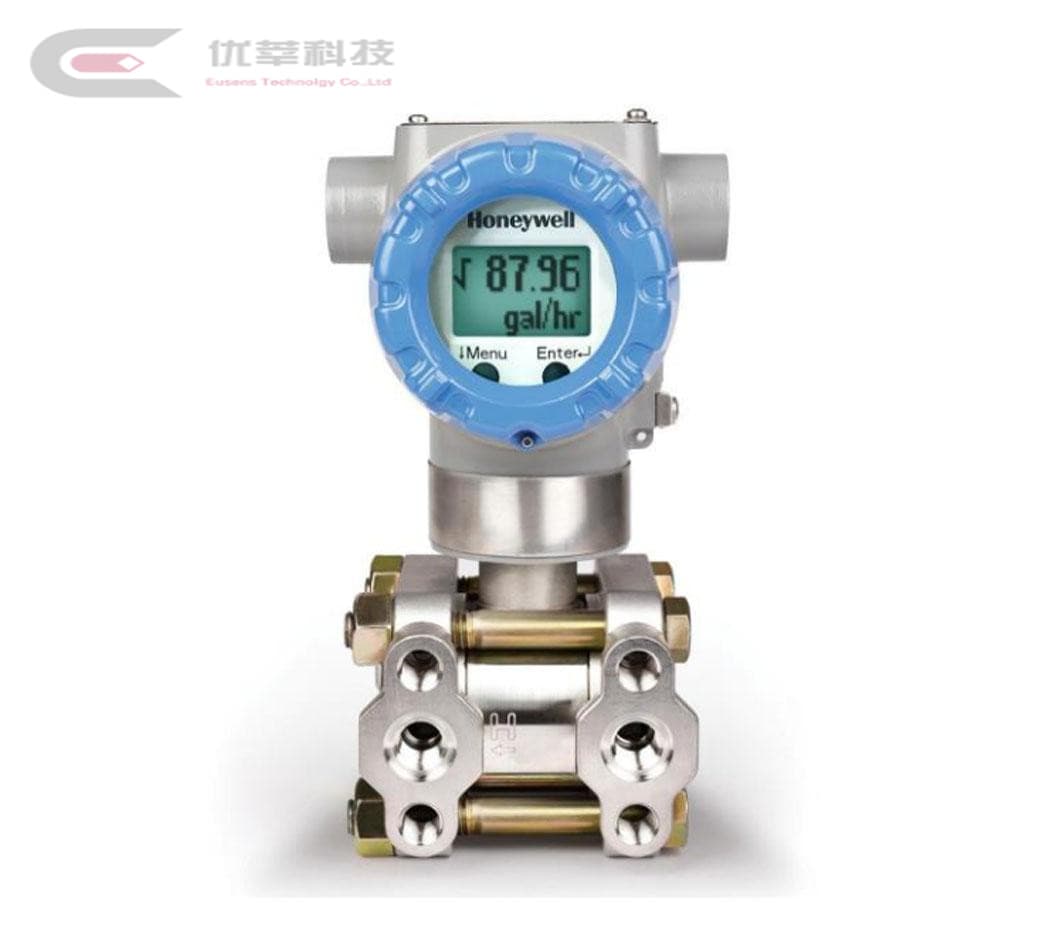

STD735-E1AC4AS-1-0-AHS-11S-A-00A0 -- Honeywell -- STD700 Differential Pressure Transmitter

Product Description

  • Estimated Lead Time : 2 - 3 weeks.
  • Manufacturer : Honeywell
  • Product No. :__TD735-E1AC4AS-1-0-AHS-11S-A-00A0
  • Product type : STD700 Differential Pressure Transmitter
  • Measurement Range : 100 (7.0) URL, -100 (-7.0) LRL, 100 (7.0) max span, 1 (0.07) min span, psi (bar).
  • E : Process head material = 316 Stainless Steel, Diaphragm Material = 316L Stainless Steel.
  • 1 : Fill Fluid = Silicone Oil 200.
  • A : Process Connection = None, None (1/4" NPTF female thread Std) .
  • C : Bolt/Nut Materials = Carbon Steel .
  • 4 : Head type = Dual Ended, Vent type = Standard Vent, Location = end, Vent material = Matches Head Material.
  • A : Gasket Material = Teflon搴 or PTFE (Glass Filled).
  • S : Static Pressure = Standard Static Pressure - 4500 psig (315 bar).
  • 1 : Head/Connect Orientation = Standard, High Side Left, Low Side Right2 / Std Head Orientation
  • 0 : Approvals = No Approvals Required
  • A : Material = Polyester Powder Coated Aluminum, Connection = 1/2 NPT, Lightning protection = None.
  • H : Analog Output = 4-20mA dc, Digital Protocol = HART Protocol.
  • S : Indicator = Zero,Span & Config Buttons), Languages = English.
  • 1 : Application Software = Standard Diagnostics.
  • 1 : Write Protect = disabled, Fail mode = High> 21.0mAdc, High & low output limits = Honeywell Std (3.8 - 20.8 mAdc).
  • S : General Configuration = Factory Standard
  • A : Accuracy = standard, Calibrated Range = factory std, Calibration Qty = single calibration.
  • 0 : Mounting bracket = None
  • 0 : Customer Tag = None
  • A0 : Unassembled Conduit Plugs & Adapters = No Conduit Plugs or Adapters Required
  • Shipping Weight : 7 Kg
