STD720-E1HC4AS-1-A-BHS-11S-B-10A0-F1-0000

STD720-E1HC4AS-1-A-BHS-11S-B-10A0-F1-0000

Honeywell
$892.80

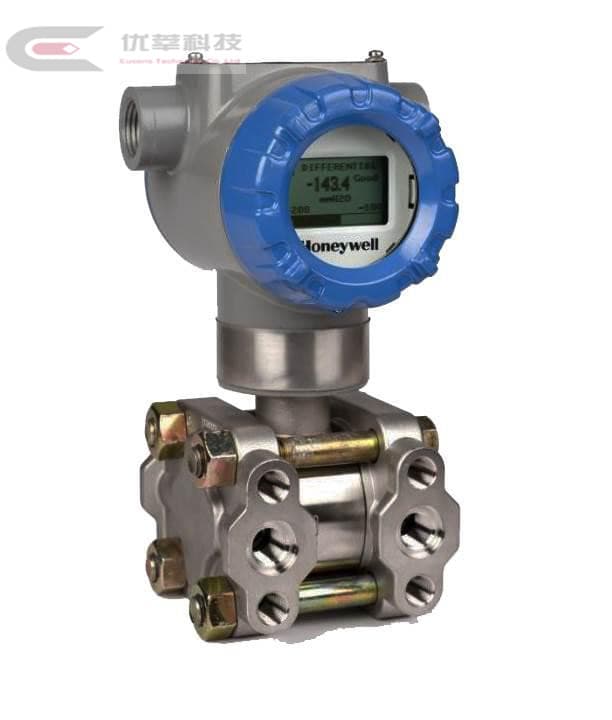

Honeywell Pressure Transmitter: STD720-E1HC4AS-1-A-BHS-11S-B-10A0-F1-0000

Product Description

  • Estimated Lead Time: 6-8 Weeks
  • Manufacturer: Honeywell
  • STD720-E1HC4AS-1-A-BHS-11S-B-10A0-F1-0000
  • Model STD700
  • Differential Pressure Transmitter
  • Measurement Range
  • URL : 400/(1000)
  • LRL : -400/(-1000)
  • Max Span : 400/(1000)
  • Min Span : 4.0 (10)
  • Units : " H2O (mbar)
  • E-Process Head Material : 316 Stainless Steel
  • Diaphragm Material: 316L Stainless Steel
  • 1-Fill Fluid : Silicone Oil 200
  • H-Process Connection : 1/2" NPT female
  • Diaphragm Material : Materials to Match Head & Head Bolt Materials Selections1
  • C-Bolt/Nut Materials : Carbon Steel
  • Head Type Vent Type Location
  • 4-Head Type : Dual Ended, Vent Type : Standard Vent, Location: End , Vent Material : Matches Head Material1
  • A-Gasket Material : Teflon搴 or PTFE (Glass Filled)
  • S- Static Pressure : Standard Static Pressure - 4500 psig (315 bar)
  • 1-Meter Body & Connection Orientation : Standard. High Side Left, Low Side Right2 / Std Head Orientation
  • A-Agency Approvals (see data sheet for Approval Code Details):FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
  • B-TRANSMITTER ELECTRONICS SELECTIONS Material/Connection/Lightning Protection : Polyester Powder Coated Aluminum /M20/NONE
  • H-Analog Output/ Digital Protocol : 4-20mA dc / HART Protocol
  • S-Customer Interface Selections
  • 1-Application Software : Standard Diagnostics
  • 1-Write Protect : Disabled
  • Fail Mode : High> 21.0mAdc
  • High & Low Output Limits3 : Honeywell Std (3.8 - 20.8 mAdc)
  • S--General Configuration : Factory Standard
  • B--Accuracy :Standard, Calibrated Range: Custom (Unit Data Required),Calibration Qty: Single Calibration
  • 1-Bracket Type /Material:Angle Bracket/ Carbon Steel
  • 0-No customer tag
  • A0--No Conduit Plugs or Adapters Required
  • F1--Calibration Test Report & Certificate of Conformance (F3399)
  • 0000--Manufacturing Specials : Factory Identification
  • Shipping Weight: 5 kg
