SCX150ANC

SCX150ANC

Honeywell
$207.90

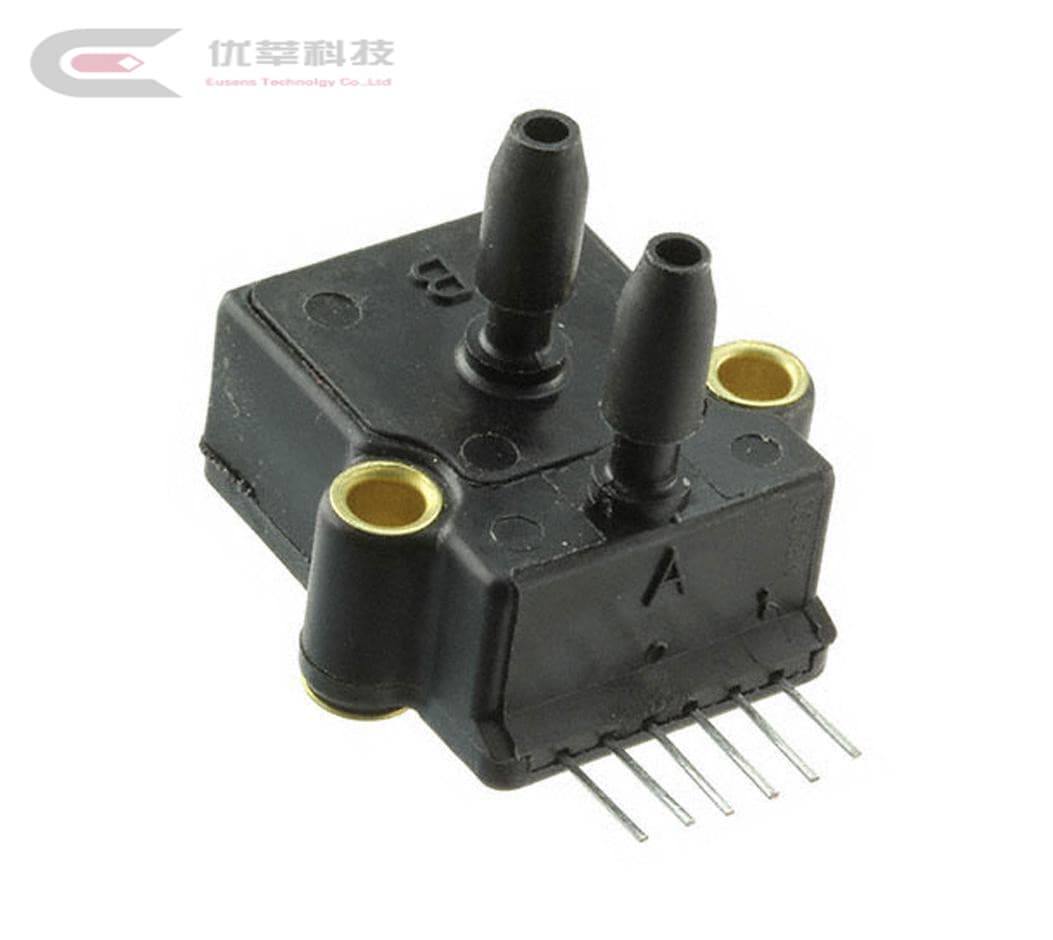

Honeywell SCX150ANC Pressure Sensor

Product Description

  • Estimated Lead Time : 4 - 6 weeks
  • Manufacturer : Honeywell
  • Model : SCX150ANC
  • Operating Pressure : 0 psid to 150 psia
  • Proof Pressure : 150 psia
  • Sensitivity : 0.6 mV/psi
  • Full-Scale Span : min - 85.00 mV, Typ. - 90.00 mV, Max. - 95.00 mV
  • Supply Voltage (VS) : 20 Vdc
  • Common Mode Pressure : 50 psig
  • Lead Soldering Temperature (2 seconds to 4 seconds) : 250 __ [482 __]
  • Compensated Operating Temperature : 0 __ to 70 __ [32 __ to 158 __]
  • Operating Temperature : -40 __ to 85 __ [-40 __ to 185 __]
  • Ambient Temperature : 0 __ to 55 __ [32 __ to 131 __]
  • Storage Temperature : -55 __ to 125 __ [-67 __ to 257 __]
  • Humidity Limits : 0 % RH to 100 % RH
  • Dimensions (LxWxH), approx : 3.38 cm X 2.6 cm X 2.8 cm
  • Weight : 0.1 kg
  • Shipping Weight : 2 Kg
