Estimated Lead Time : In stock. Usually ships in 7-10 working days.
Manufacturer : Mitsubishi Electric
Q61SP

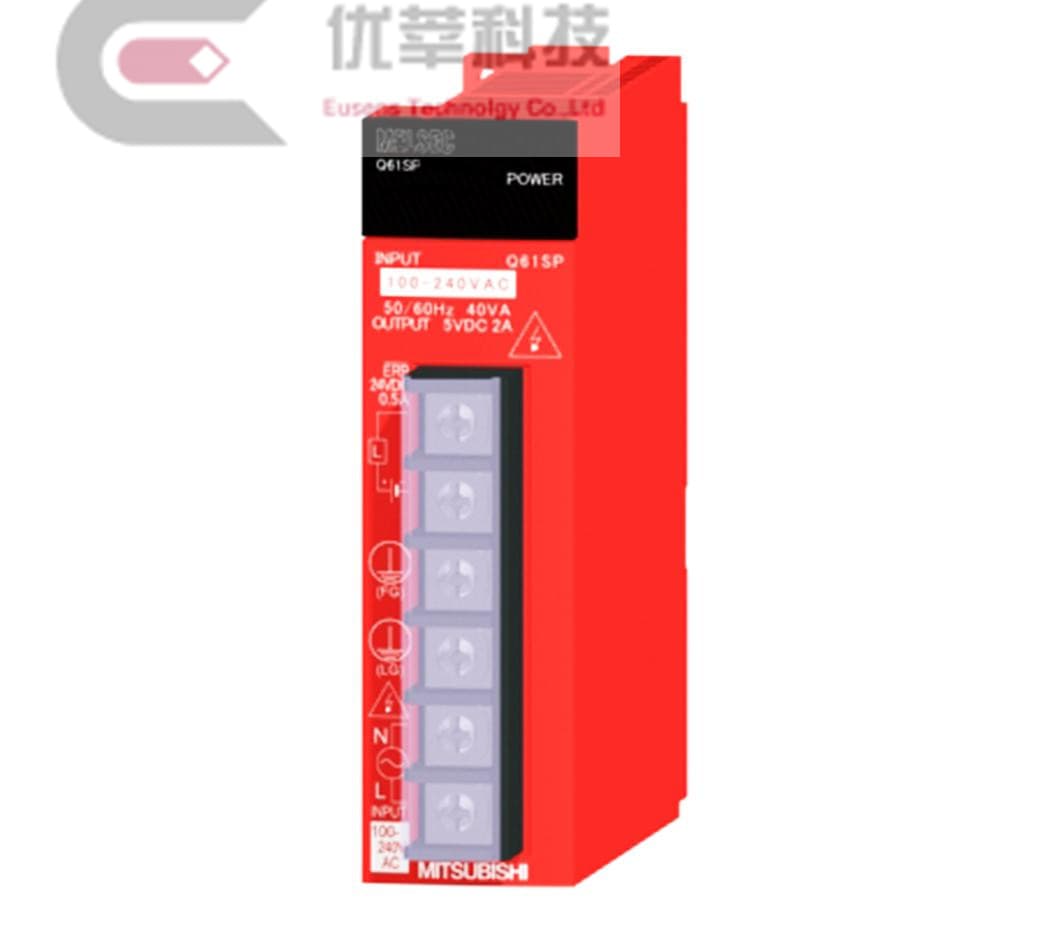

Power supply unit Q61SP
Base mounting position : Slim type power supply unit mounting slot
Conformity base unit : Q3??SB
Input supply voltage : AC 100 to 240 V (-15% to + 10%)
Input frequency : 50/60 Hz _ 5%
Input voltage distortion ratio : Within 5%
Input maximum apparent power : 40VA
Inrush current : 40 A within 8 ms
Rated output current DC 5V : 2A
Overcurrent protection DC 5V : 2.2 A or more
Overvoltage protection DC 5V : 5.5 to 6.5 V
efficiency : over 70
Allowable momentary power failure time : Within 20 ms
Withstand voltage : Input . LG collective and output . FG all at once AC 2300 V / 1 min (altitude 0 to 2000 m)
Insulation resistance : Input . LG collective and output . Between FG batch, input batch and LG, batch output and FG: 500 MV DC insulation resistance meter 10 M_ or more
Operation indication : LED indication (normal: green lighting, abnormal: lights off)
