FR-A840-00620-2-60

FR-A840-00620-2-60

Mitsubishi
$1550.70

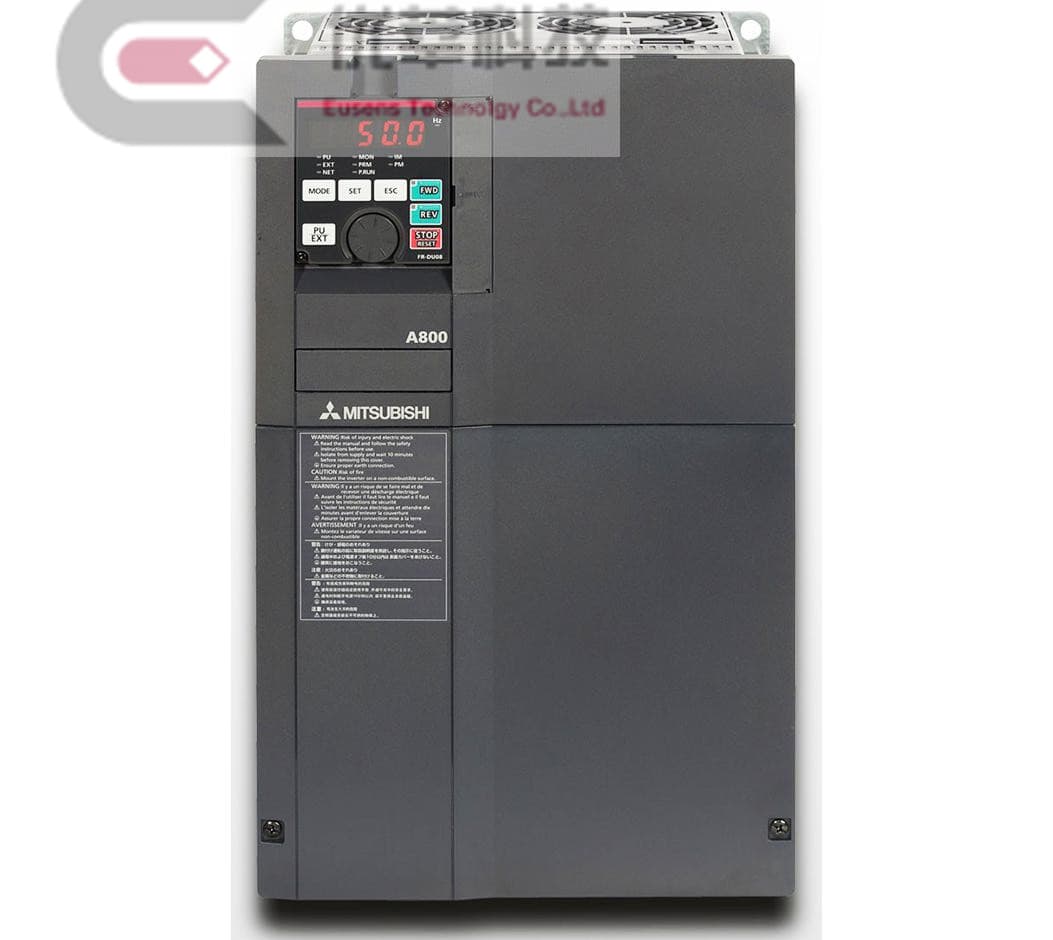

Mitsubishi Electric FR-A840-00620-2-60

Product Description

  • Even though we have this part in stock, it may take several days for internal process to complete. Goods will be delivered within 5 -7 working days.
  • Manufacturer: Mitsubishi Electric
  • FR-A840-00620-2-60
  • A800 Series
  • Power: 22 Kw
  • Current: 44 Amps
  • Duty: Constant Torque (moderate and heavy duty)
  • IP Rating: 20Voltage: 400/415V AC
  • Phases: Three Phase
  • Height (mm): 400
  • Width (mm): 250
  • Depth (mm): 190
  • 0.4 - 280kW
  • Backwards compatible with FR-A700 range
  • Applicable to Winding, Crane, Machine Tool and Conveyor systems
  • Closed Loop Vector control up to 400 Hz
  • Real Sensorless Vector control up to 400 Hz
  • Improved Positioning functionality
  • Compatible with SSCNet
  • High Energy Efficiency - Optimum Excitation Control can save an extra 10-12%
  • Built-in temperature sensor for increased efficiency
  • Compliance to safety standards PLd and SIL2 as standard
  • Further safety standards achievable via plug-in options
  • Built in Mitsubishi L-Series PLC offering up to 6K steps program memory
  • Parameters and PLC program can be password locked from reading and/or writing
  • 24VDC can be supplied to the control circuit for access to parameters, communication operation and safety maintenance
  • New programming tool FR-Configurator 2 with function to copy A700 & A500 parameters
  • New USB (A type) port added for parameter copying
  • Plug-and-play connection to GOT2000 HMI
  • 5 & 12 segment display (FR-DU08) and multiple-language LCD display (FR-LU08)
  • available
  • Built-in Brake Chopper on models up to 55kW
  • Shipping Weight: 16 Kg
