C6045D1076

C6045D1076

Honeywell
$170.10

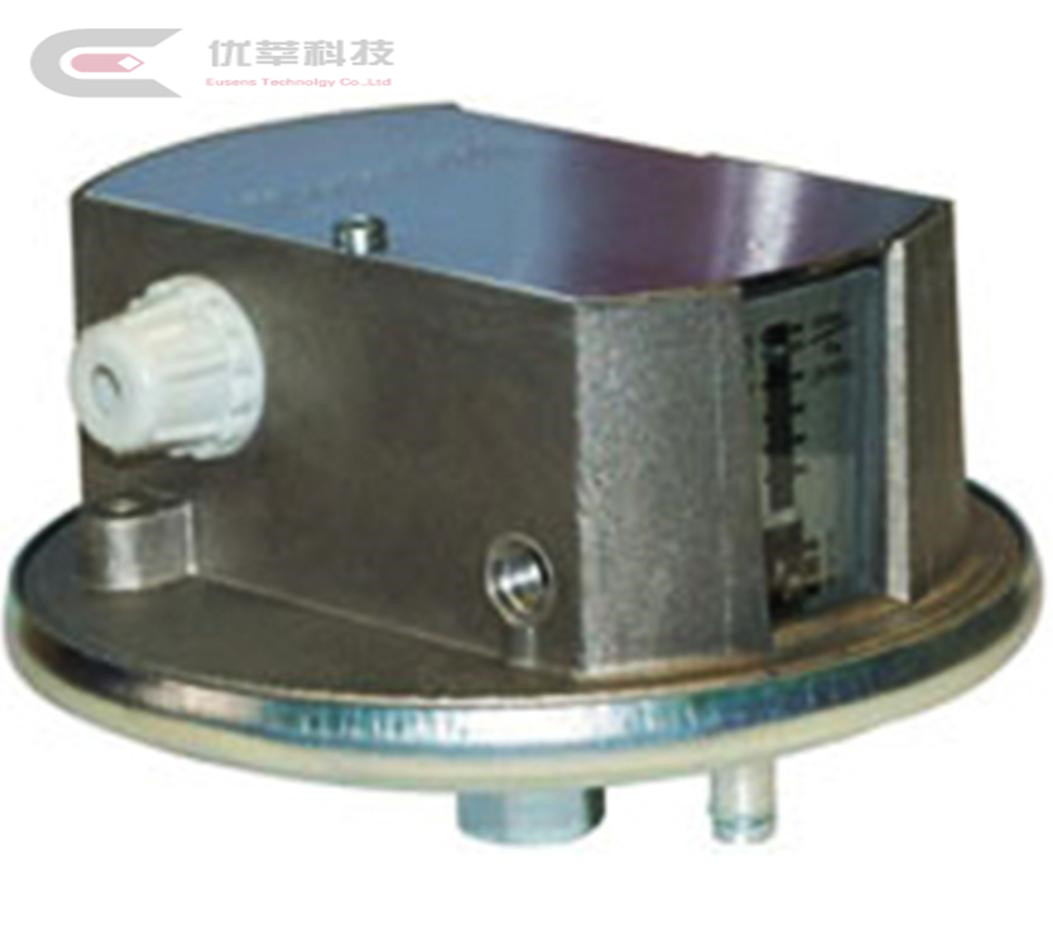

C6045D1076 -- Honeywell -- Pressure switch 5-50mb

Product Description

  • Estimated Lead Time: 6-8 Weeks
  • Manufacturer: Honeywell
  • Pressure switch 5-50mb
  • Honeywell Pressure switch for general gas- and air application C6045D
  • For monitoring pressure of air and non-aggressive (fuel)gases.
  • Kind of pressure: differential pressure, relative
  • Pressure connection: positive pressure: G1/4"
  • negative pressure: G1/8"
  • Electrical connection: PG13,5
  • Protection class: IP40
  • Housing material: aluminium die casting
  • Media temp.: -15...70C
  • Ambient temperature: -15...70C
  • Switch function/capacity: SPDT Microswitch 250Vac; capacity: 2 A (inductive); 10 A resistive
  • Approvals: CE (EN1854) - PIN: 0063AR3085/2
  • Mounting position: horizontal or vertical
  • Large mambrane for maximum accuracy
  • Including mounting bracket with screws
  • Pressure adjustment range: 5...50mbar
  • Max. pressure: 200mbar
  • Shipping Weight : 2 Kg
