51304754-150

51304754-150

Honeywell
$1177.20

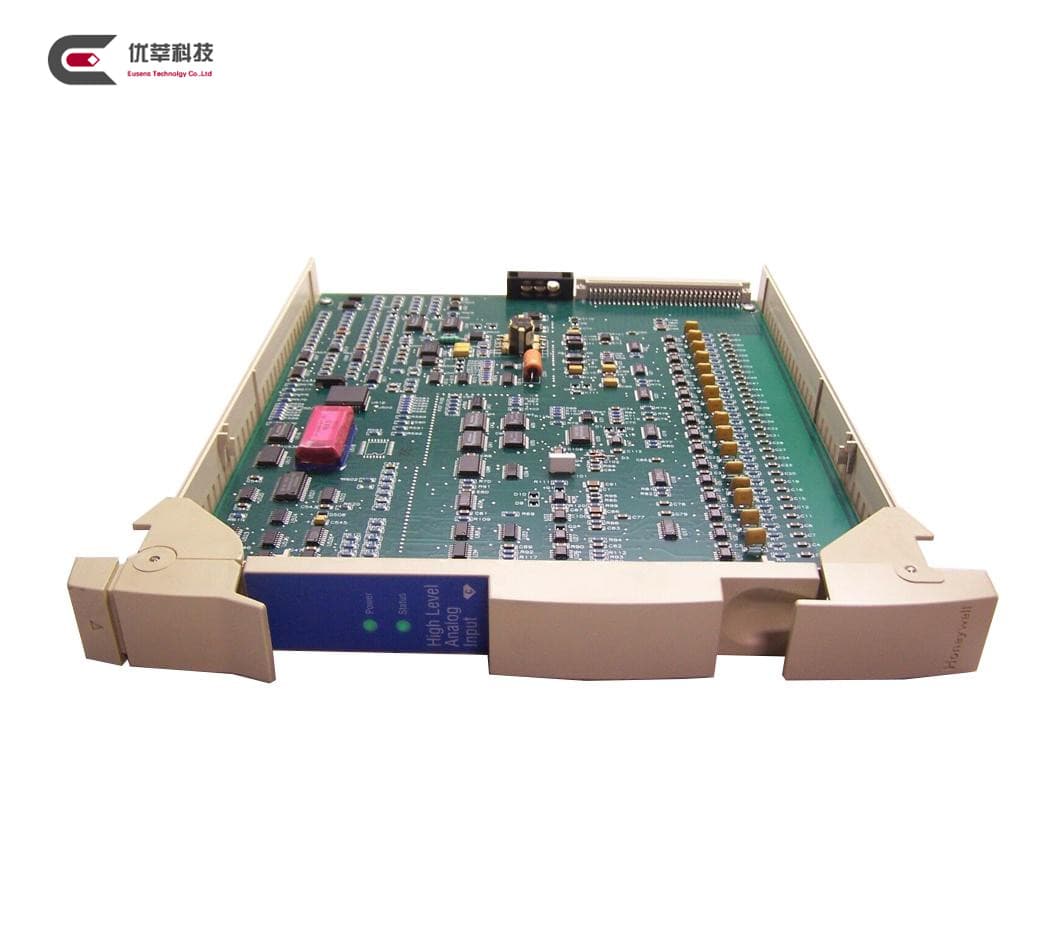

51304754-150 -- Honeywell -- MC-PAIH03 High Level Analog Input Processor-16 Inputs

Product Description

  • Estimated Lead Time : 2 - 3 weeks.
  • Manufacturer : Honeywell
  • Product No. : 51304754-150
  • Product type : ??-PAIH03 High Level Analog Input Processor-16 Inputs
  • FTA Models: MU-TAIH02, TAIH12, TAIH52, TAIH03, TAIH13, TAIH23, TAIH53, TAIH22, TAIH62
  • Input Type: Voltage, current (2-wire or self-powered transmitters)
  • Input Channels : 16 differential input channels
  • Common Mode Rejection Ratio, dc to 60 Hz (500 source imbalance): 70 dB
  • Common Mode Voltage, dc to 60 Hz(1): -6 to +5 V peak
  • A/D Converter Resolution: 16 bits (14 bits used)
  • Input Range 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 )
  • Normal Mode Rejection Ratio, at 60 Hz: 32 dB
  • Normal Mode Filter Response : Single-pole RC, -3 dB @ 1 Hz
  • Maximum Normal Mode Input(differential inputs, no damage): _ 30 Volts
  • Crosstalk, dc to 60 Hz(channel-to-channel): 60 dB
  • Input Impedance (Voltage Inputs): > 10 M powered
  • Maximum Input Voltage(any input referenced to common, no damage): _ 30 Volts
  • Input Scan Rate: 4 samples per second per channel.All channels sampled within a 250 ms window
  • Hardware Accuracy (@ CMV = 0 V): _ 0.075% full-scale (23.5_冲_ 2__), _ 0.15% full-scale (0 to 50__)
  • Surge withstand capability (Common mode) ANSI/IEEE C37.90.1-1978
  • Shipping Weight : 3 Kg
