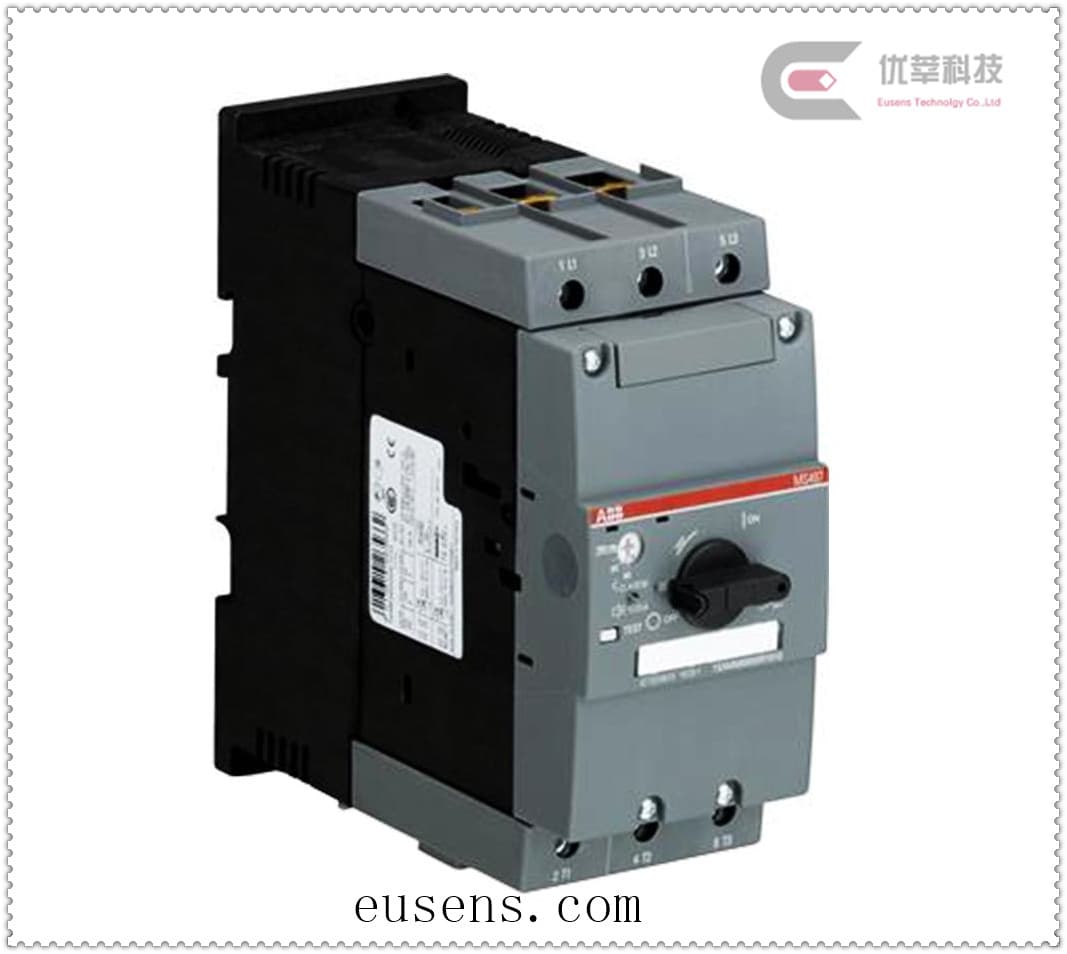

1SAM580000R1008 -- ABB -- Manual Motor Starter MS497-75
Product Description
Estimated Lead Time : 4-6 Weeks
Manufacturer : ABB
MS497-75
Extended Product Type : MS497-75
Product ID : 1SAM580000R1008
EAN : 4013614265648
Catalog Description : MS497-75 Manual Motor Starter
Long Description : The MS497-75 manual motor starter is a 70 mm width devices with a rated operational current of Ie = 75 A.
This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures.The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and the trip class 10.
Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication.
The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes.
Auxiliary contacts, signalling contacts, undervoltage releases and shunt trips are available as accessory.
