Product Description

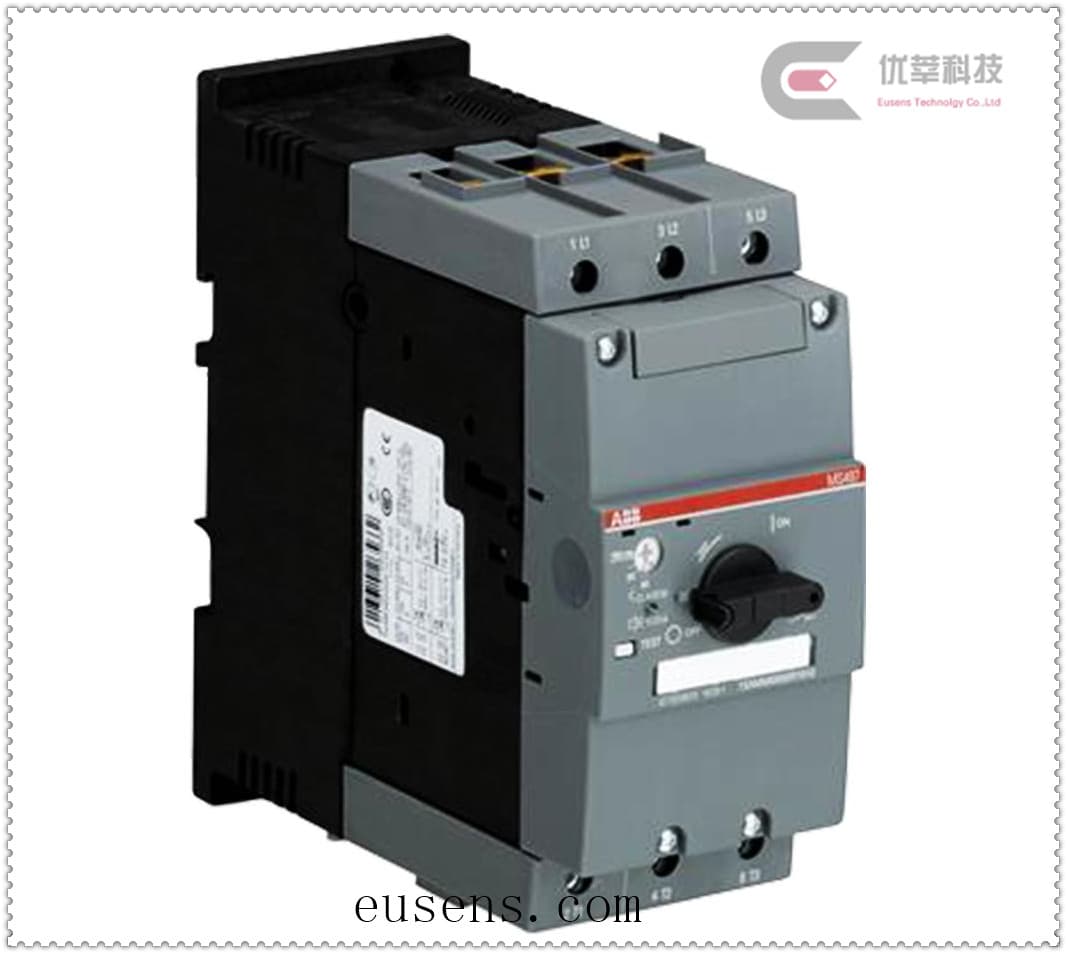

Estimated Lead Time : 4-6 WeeksManufacturer : ABB\nMS497-32\n\n\n Product ID:1SAM580000R1004\n\n\nEAN:4013614265600\n\n\nCatalog Description:MS497-32 Manual Motor Starter\n\n\nLong Description:The MS497-32 manual motor starter is a 70 mm width devices with a rated operational current of Ie = 32.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and the trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases and shunt trips are available as accessory.\n\n\nCustoms Tariff Number:85362010\n\n\nReplacement Product ID (NEW):1SAM451000R1014\n\n\nProduct Net Width:70 mm\n\n\nProduct Net Height:165 mm\n\n\nProduct Net Depth:174 mm\n\n\nProduct Net Weight:2.222 kg\n\n\nRated Service Short-Circuit Breaking Capacity (Ics):(230 V AC) 100 kA,(400 V AC) 50 kA,(440 V AC) 50 kA,(500 V AC) 11 kA,(690 V AC) 6 kA\n\n\nRated Ultimate Short-Circuit Breaking Capacity (Icu):(230 V AC) 100 kA, (400 V AC) 100 kA, (440 V AC) 100 kA, (500 V AC) 22 kA, (690 V AC) 12 kA\n\n\nRated Instantaneous Short-Circuit Current Setting (Ii):416 A\n\n\nSetting Range:22 ... 32 A\n\n\nRated Operational Power AC-3 (Pe):(400 V) Three Phase 15 kW\n\n\nRated Operational Voltage:Main Circuit 690 V AC\n\n\nMain Circuit 450 V DC\n\n\nRated Operational Current (Ie):32 A\n\n\nRated Operational Current AC-3 (Ie):32 A\n\n\nRated Frequency (f):Main Circuit 50 Hz\n\n\nMain Circuit 60 Hz\n\n\nRated Impulse Withstand Voltage (Uimp):Main Circuit 6 kV\n\n\nRated Insulation Voltage (Ui):690 V\n\n\nPower Loss:at Rated Operating Conditions per Pole 3.2 ... 6.7 W\n\n\nNumber of Poles:3\n\n\nConventional Free-air Thermal Current (Ith):Main Circuit 32 A\n\n\nDegree of Protection:Housing IP20\n\n\nMain Circuit Terminals IP00\n\n\nPollution Degree:3\n\n\nElectrical Durability:25000 cycle\n\n\nMechanical Durability:50000 cycle\n\n\nConnecting Capacity Main Circuit:Flexible with Ferrule 1x 2.5 ... 50 mm__n\n\nFlexible with Ferrule 2x 2.5 ... 35 mm__n\n\nSolid 1/2x 2.5 ... 16 mm__n\n\nStranded 1x 10 ... 70 mm__n\n\nStranded 2x 10 ... 50 mm__n\n\nTightening Torque:Main Circuit 4 ... 6 N璺_\n\n\nWire Stripping Length:Main Circuit 17 mm\n\n\nRecommended Screw Driver:Hexagon 4\n\n\nMounting Position:Position 1 to 6\n\n\nActuator Type:Rotary Handle\n\n\nContact Position Indication:ON / OFF / TRIP\n\n\nMounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715\n\n\nTH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715\n\n\nStandards:IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14\n\n\nEnvironmental Ambient Air Temperature:Operation -20 ... +70 __\n\n\nOperation Compensated -20 ... +60 __\n\n\nStorage -50 ... +80 __\n\n\nAmbient Air Temperature Compensation:Yes\n\n\nMaximum Operating Altitude Permissible:2000 m\n\n\nResistance to Shock acc. to IEC 60068-2-27:11 ms Pulse 25g\n\n\nRoHS Status:Following EU Directive 2011/65/EU\n\n\nTechnical UL/CSA\n\n\nMaximum Operating Voltage UL/CSA:Main Circuit 600 V AC\n\n\nHorsepower Rating UL/CSA:(200 V AC) Three Phase 10 Hp,(208 V AC) Three Phase 10 Hp,(220 ... 240 V AC) Three Phase 10 Hp,(440 ... 480 V AC) Three Phase 25 Hp,(550 ... 600 V AC) \n\nThree Phase 30 Hp\n\n\nAmpere Rating UL/CSA:32 A\n\n\nGeneral Use Rating UL/CSA:(600 V AC) 32 A\n\n\nConnecting Capacity Main Circuit UL/CSA:Flexible 1x 10-2/0 AWG\nFlexible 1/2x 10-1/0 AWG\nStranded 1x 10-2/0 AWG\nStranded 1/2x 10-1/0 AWG\n\n\nTightening Torque UL/CSA:Main Circuit 35 ... 53 in璺_b\n\n\nCertificates and Declarations (Document Number)\n\n\nATEX Certificate:1SAA937000-3901\n\n\nBV Certificate:1SAA937000-0202\n\n\nCCC Certificate:1SAA937001-3803\n\n\ncUL Certificate:cUL_E195536\n\n\nDeclaration of Conformity - CE:1SAD938506-0050\n\n\nDNV Certificate:1SAA937000-0301\n\n\nEAC Certificate:1SAA937001-2703\n\n\nEnvironmental Information:1SAA918004-2401\n\n\nGL Certificate:1SAA937000-0404\n\n\nGOST Certificate:1SAA963001-2702\n\n\nInstructions and Manuals:1SAM507001R1001\n\n\nLR Certificate:1SAA937000-0504\n\n\nRMRS Certificate:1SAA918000-0704\n\n\nRoHS Information:1SAD938506-0050\n\n\nUL Certificate:UL_E167205,UL_E195536\n\n\nPackage Level 1 Units:1 piece\nPackage Level 1 Width:76.5 mm\nPackage Level 1 Length:190 mm\nPackage Level 1 Height:171 mm\n\n\nPackage Level 1 Gross Weight:2.221 kg\n\n\nPackage Level 1 EAN:4013614265600\n\n\neClass:7.0 27370401\n\n\nUNSPSC:39121521\n\n\nShipping Weight : 3.5 Kg\n
